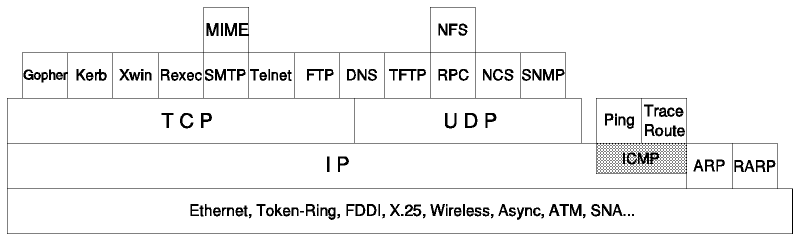

ICMP es un protocolo estándar con número de STD 5 que también incluye IP e IGMP. Su status es requerido y se describe en el RFC 792 que se actualiza en el RFC 950. Es parte del STD 5 que incluye también IP.
Path MTU Discovery is a draft standard protocol with a status of elective. It is described in RFC 1191.
ICMP Router Discovery is a proposed standard protocol with a status of elective. It is described in RFC 1256.
When a router or a destination host must inform the source host about errors in datagram processing, it uses the Internet Control Message Protocol (ICMP). ICMP can be characterized as follows:
- ICMP uses IP as if ICMP were a higher-level protocol (that is, ICMP messages are encapsulated in IP datagrams). However, ICMP is an integral part of IP y must be implemented by every IP module.
- ICMP is used to report some errors, not to make IP reliable. Datagrams may still be undelivered without any report on their loss. Reliability must be implemented by the higher-level protocols that use IP.
- ICMP can report errors on any IP datagram with the exception of ICMP messages, to avoid infinite repetitions.
- For fragmented IP datagrams, ICMP messages are only sent about errors on fragment zero. That is, ICMP messages never refer to an IP datagram with a non-zero fragment offset field.
- ICMP messages are never sent in response to datagrams with a destination IP address that is a broadcast or a multicast address.
- ICMP messages are never sent in response to a datagram which does not have a source IP address which represents a unique host. That is, the source address cannot be zero, a loopback address, a broadcast address or a multicast address.
- ICMP messages are never sent in response to ICMP error messages. They may be sent in response to ICMP query messages (ICMP types 0, 8, 9, 10 y 13 through 18).
- RFC 792 states that ICMP messages ``may'' be generated to report IP datagram processing errors, not ``must''. In practice, routers will almost always generate ICMP messages for errors, but for destination hosts, the number of ICMP messages generated is implementation dependent.
Mensajes ICMP
ICMP messages are described in RFC 792 y RFC 950, belong to STD 5 y are mandatory.
ICMP messages are sent in IP datagrams. The IP header will always have a Protocol number of 1, indicating ICMP y a type of service of zero (routine). The IP data field will contain the actual ICMP message in the format shown in Figure - ICMP Message Format.
donde:
- Tipo
- Especifica el tipo del mensaje:
Valor Comentario 0 Echo reply 3 Destination unreachable 4 Source quench 5 Redirect 8 Echo 9 Router advertisement 10 Router solicitation 11 Time exceeded 12 Parameter problem 13 Timestamp request 14 Timestamp reply 15 Information request (obsolete) 16 Information reply (obsolete) 17 Address mask request 18 Address mask reply - Código
- Contains the error code for the datagram reported on by this ICMP message. The interpretation is dependent upon the message type.
- Checksum
- Contains the 16-bit one's complement of the one's complement sum of the ICMP message starting with the ICMP Type field. For computing this checksum, the checksum field is assumed to be zero. This algorithm is the same as that used by IP for the IP header. Compare este con el algoritmo que usa UDP y TCP que también incluye una cabecera pseudo-IP en la suma de comprobación.
- Datos
- Contains information for this ICMP message. Typically it will contain a part of the original IP message for which this ICMP message was generated. The length of the data can be determined from the length of the IP datagram that contains the message less the IP header length.
Cada uno de los mensajes se explican abajo.
Echo Reply (0)
Ver Echo (8) y Echo Reply (0).
Destino Inalcanzable (3)
Si este mensaje se recibe de un router intermedio, significa que el router considera la dirección IP de destino como inalcanzable.
Si este mensaje se recibe del host de destino, significa que el protocolo especificado en el campo número de protocolo del datagrama original no está activo, o que el protocolo no está activo en este host o si el puerto especificado está inactivo (ver UDP para una breve explicación del concepto de puerto).
El campo del código de cabecera ICMP contendrá uno de los siguientes valores:
Valor Comentario 0 red inalcanzable 1 host inalcanzable 2 protocolo inalcanzable 3 puerto inalcanzable 4 fragmentación necesaria pero el bit No Fragmentar estaba activo 5 ruta de origen fallida 6 red de destino desconocida 7 host de destino desconocido 8 host de origen aislado (obsoleto) 9 red de destino administrativamente prohibido 10 host de destino administrativamente prohibido 11 red inalcanzable para este tipo de servicio 12 host inalcanzable para este tipo de servicio 13 comunicación administrativamente prohibido por filtrado 14 violación con anterioridad de host 15 corte con anterioridad Si un router implementa el protocolo Path MTU Discovery, el formato del mensaje inalcanzable de destino se cambia por el código 4 para incluir el MTU del enlace que podría no aceptar el datagrama.
Source Quench (4)
Si este mensaje se recibe de un router intermedio, significa que el router no tiene espacio de búfer necesario para poner en la cola los datagramas de salida a la siguiente red.
Si este mensaje se recibe del host de destino, significa que los datagramas entrantes están llegando demasiado rápido para ser procesados.
El campo del código de cabecera ICMP es siempre cero.
Redirect (5)
If this message is received from an intermediate router, it means that the host should send future datagrams for the network to the router whose IP address is given in the ICMP message. This preferred router will always be on the same subnet as the host which sent the datagram y the router which returned the IP datagram. The router will forward the datagram to its next hop destination. If the router IP address matches the source IP address in the original datagram header it indicates a routing loop. This ICMP will not be sent if the IP datagram contains a source route.
El campo del código de cabecera ICMP contendrá uno de los siguientes valores:
0 Network redirect 1 Host redirect 2 Network redirect for this type of service 3 Host redirect for this type of service Echo (8) y Echo Reply (0)
Echo is used to detect if another host is active on the network. The sender initializes the identifier y sequence number (which is used if multiple echo requests are sent), adds some data to the data field y sends the ICMP echo to the destination host. The ICMP header code field is zero. The recipient changes the type to Echo Reply y returns the datagram to the sender. This mechanism is used by the Ping command to determine if a destination host is reachable (ver Ping).
Router Advertisement (9) y Router Solicitation (10)
Los mensajes ICMP 9 y 10 son opcionales. Se describen en el RFC 1256 que es electivo.
- número
- The number of entries in the message.
- longitud de entrada
- The length of an entry in 32-bit units. This is 2 (32 bits for the IP address y 32 bits for the preference value).
- TTL
- The number of seconds that an entry will can be considered valid.
- dirección de router
- One of the sender's IP addresses.
- nivel de preferencia
- A signed 32-bit level indicating the preference to be assigned to this address when selecting a default router for a subnet. Each router on a subnet is responsible for advertising its own preference level. Larger values imply higher preference, smaller values imply lower. The default is zero, which is in the middle of the possible range. A value of X'80000000' -2(superscript 31) indicates that the router should never be used as a default router.
El campo del código de cabecera de ICMP es cero para ambos mensajes.
These two messages are used if a host or a router supports the Router Discovery Protocol. The use of multicasting is recommended, but broadcasting may be used if multicasting is not supported on an interface. Routers periodically advertise their IP addresses on those subnets where they are configured to do so. Advertisements are made on the all-systems multicast address (224.0.0.1) or the limited broadcast address (255.255.255.255). The default behavior is to send advertisements every 10 minutes with a TTL value of 1800 (30 minutes). Routers also reply to solicitation messages they receive. They may reply directly to the soliciting host, or they may wait a short random interval y reply with a multicast. Hosts may send solicitation messages when they start until they receive a response. Solicitation messages are sent to the all-routers multicast address (224.0.0.2) or the limited broadcast address (255.255.255.255). Typically, three solicitation messages are sent at 3-second intervals. Alternatively a host may wait for periodic advertisements. Each time a host receives an advertisement, it updates its default router if the new advertisement has one with a higher preference value y sets the TTL timer for the entry to match the value in the advertisement. When the host receives a new advertisement for its current default router, it resets the TTL value to that in the new advertisement. This also provides a mechanism for routers to declare themselves unavailable: they send an advertisement with a TTL value of zero.
Tiempo excedido (11)
If this message is received from an intermediate router, it means that the time-to-live field of an IP datagram has expired.
If this message is received from the destination host, it means that the IP fragment reassembly time-to-live timer has expired while the host is waiting for a fragment of the datagram. The ICMP header code field may have the one of the following values:
- 0
- transit TTL exceeded
- 1
- reassembly TTL exceeded
El problema del parámetro (12)
Indicates that a problem was encountered during processing of the IP header parameters. The pointer field points to the byte in the original IP datagram where the problem was encountered. The ICMP header code field may have the one of the following values:
- 0
- error sin especificar
- 1
- falta opción requerida
Timestamp Request (13) y Timestamp Reply (14)
The sender initializes the identifier y sequence number (which is used if multiple timestamp requests are sent), sets the originate timestamp y sends it to the recipient. The receiving host fills in the receive y transmit timestamps, changes the type to Timestamp reply y returns it to the recipient. The receiver has two timestamps in case there is a perceptible time difference between the receipt y transmit times, but in practice, most implementations will perform the two (receipt y reply) in one operation y will set the two timestamps to the same value. Timestamps are the number of milliseconds elapsed since midnight UT (GMT).
Information Request (15) y Information Reply (16)
An Information Request is issued by a host to obtain an IP address for an attached network. The sender fills in the request with the destination IP address in the IP header set to zero (meaning this network) y waits for a reply from a server authorized to assign IP addresses to other hosts. The ICMP header code field is zero. The reply will contain IP network addresses in both the source y destination fields of the IP header. Este mecanismo está obsoleto actualmente. Ver también .
Petición de máscara de dirección (17) y Respuesta de máscara de dirección (18)
An Address Mask Request is used by a host to determine the subnet mask in use on an attached network. Most hosts will be configured with their subnet mask(s), but some, such as diskless workstations, must obtain this information from a server. A host uses RARP to obtain its IP address. To obtain a subnet mask, the host broadcasts an Address Mask Request. Any host on the network which has been configured to send Address Mask Replies will fill in the subnet mask, convert the packet to an Address Mask Reply y return it to the sender. The ICMP header code field is zero.
Aplicaciones ICMP
Hay dos aplicaciones basadas en ICMP que se usan ampliamente: Ping y Traceroute. Ping usa los mensajes ICMP Echo y Echo Reply para determinar si un host se puede alcanzar. Traceroute envía datagramas IP con valores bajos de TTL así que se descartan en las rutas hacia el destino. Usa los mensajes ICMP de tiempo excedido resultante para determinar dónde se descartan los datagramas en internet. Estas aplicaciones se explican en Ping y Traceroute.
ICMP para IP Versión 6
La implementación ICMP anterior es específica para la IP Versión 4 (IPv4). IP Versión 6 (IPv6, ver IP Versión 6 (IPv6)) requerirá una nueva versión de ICMP. Las definiciones de las nuevas versiones de ICMP e IP no están completas todavía. Las características importantes conocidas son:
- ICMP para IP Versión 6 utilizará un nuevo número de protocolo para distinguirlo de ICMP Versión 4.
- El formato de cabecera ICMP permanecerá igual.
- Las longitudes de los campos en los mensajes cambiarán para adaptar mensajes IPv6 largos.
- Los valores de tipo y código se cambiarán. Ciertos valores pequeños se eliminarán.
- El tamaño de los mensajes ICMP se incrementará para explotar el incremento del tamaño de los paquetes que IPv6 garantiza que se retransmitirán sin fragmentación.
- La variante de Fragmentación Requerida del mensaje inalcanzable de destino ICMP se reemplazará por un mensaje ICMP de paquete demasiado grande que incluirá el enlace saliente de Unidad de Transmisión Máxima (MTU) donde se identifique el problema.
- IGMP se fusionará con ICMP.
